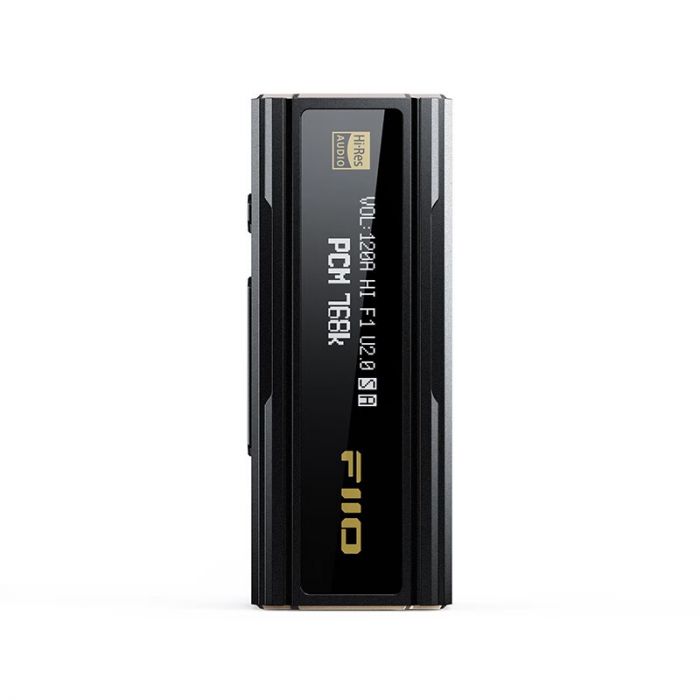

FiiO KA5
FiiO KA5 DAC and Amplifier is equipped with dual CS43198 DACs chip which are capable of high performance and accurately reproducing high-resolution audio.
Features:
Dual Cirrus Logic CS43198 DACs:
FiiO KA5 is equipped with dual Cirrus Logic CS43198 DACs, capable of high performance and accurately reproducing high-resolution audio.
High-end Decoding:
FiiO KA5 supports up to 32bit/768kHz PCM and DSD256 decoding, you will be able to hear even the finest details within your music.
Serious Components Serious Power:
The KA5 utilizes a 6-layer immersion-gold PCB as well as high-performance ultra-low noise op amps for powerful, robust sound.
FiiO Control APP:
Easily link the KA5 to the FiiO Control app, which allows you toeasily adjust settings from the comfort of your smartphone.
* The KA5 can only be controlled through the FiiO Control app on an Android device.
3 5mm & 4.4mm Outputs:
FiiO KA5 supports 3.5mm single-ended headphone output and 4.4mm balanced output.
*3.5mm output supports SPDIF output. After enabling the SPDIF output in the settings menu, the USB audio signals can beconverted to SPDIF signals. Connect the KA5 to a higher-end external decoder to set up a better audio system.
Cables Compatible with Various Platforms:
The KA5 features a detachable cable design, which allows you to switch between the included custom Type-C and LightningOTG adapter cables -- saving you from having to separately buy cables to freely switch between listening devices. *Stably compatible with Android ios. Windows. and MAC devices.
----------------------------
Specifications:
| DAC | CS43198 DACs |
| Headphone output ports | 3.5mm single-ended output and 4.4mm balanced output |
| USB type | Type-C USB2.0 |
| Supported formats | 768kHz/32bit, DSD256 |
| Output power 1 | L+Rz122mW+122mW (32Q single-ended/THD+N <1% |
| Output power 2 | Output power 2: L+R>265mW+265mW (32Q balanced/THD+N<1%) |
| Package | FiiO KA5*1, USB-A male to Type-C female adapter*1, Type-C to Type-C OTG cable*1, Type-C to Lightning OTGcable*1, Manual*1, Warranty card*1 |
