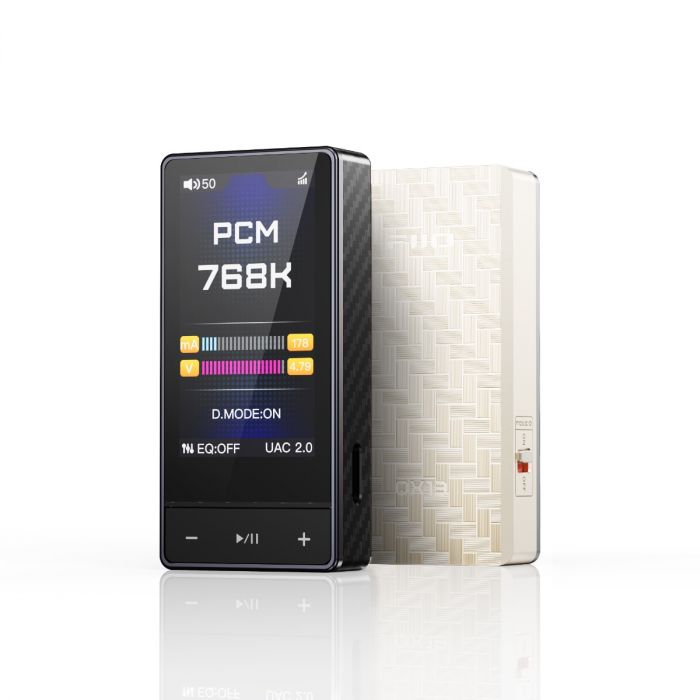

Fiio QX13
FiiO QX13 is a portable Hi-Res Lossless Music Player with ESS ES9027PRO DAC. Enjoy studio-grade audio on the go with 768kHz/32bit PCM & DSD512 support, 900mW×2 balanced output, and 1.99" touch screen. Features MQA decoding, carbon fiber body, and modular magnetic accessories. Perfect for audiophiles!
Features:
Elegant Design:
- QX13 Features full carbon fiber body (21-layer stack) or titanium gold aluminum alloy options, weighing just 33g (carbon fiber).
- 1.99-inch IPS color screen with Corning Gorilla Glass 3 protection and customizable UI themes.
Flagship DAC:
- Utilizes the ESS ES9027PRO (8-channel DAC), offering "desktop-level" decoding with ultra-low distortion.
- Supports 768kHz/32-bit PCM and DSD512 (Native) decoding, along with full MQA rendering for high-resolution streaming.
Powerful Output:
- Delivers 900mW + 900mW (balanced output @32Ω) in Desktop Mode, suitable for demanding headphones like the Sennheiser HD600/650.
- Features 6 TI audio op-amps (4× INA1620 + 2× OPA1692) for low-noise, high-fidelity amplification.
Dual USB-C & Connectivity:
- Dual USB-C ports for separate data transmission and independent power supply, enhancing stability in Desktop Mode.
- Earphone output: single ended 3.5mm+balanced 4.4mm.
Advanced Audio Tech:
- XMOS XU316 USB controller for high-speed processing.
- Dual femtosecond-grade oscillators for ultra-low phase noise and jitter reduction.
- App-controlled EQ/parameters via smartphone
Powerful 900mW + 900mW Outputs:
An independent power supply system, with low noise andcapable of high current output, was designed specifically for the built-in amplifier of the ESS ES9027PRO DAC.
3.5mm+4.4mm Headphone Outs:
Fiio QX13 has been upgraded to the more commonly-found 4.4mm balanced headphone jack, which offers more reliable and durable connections. It also comes with a 3.5mm single-ended headphone jack, making it compatible with the various headphones you already have.
Technical Parameters
- DAC: ESS ES9027PRO
- Operational amplifier: OPA1692 * 2
- Ear amplifier: TI INA1620 * 4
- Supporting specifications: asynchronous 768kHz/32-bit, DSD512 (Native), MQA full solution
- USB DAC Drive Free Mode: Supports
- Screen: 1.99-inch IPS screen, Corning third-generation high-strength glass
- Earphone output: single ended 3.5mm+balanced 4.4mm
- Output power 1: L+R2310mW+310mW (32Q/THD+N<1%/single ended/single machine mode)
- Output power 2: L+Rz900mW+900mW (32Q/THD+N<1%/balanced/machine mode)
- Output power 3: L+R2250mW+250mW (32Q/THD+N<1%/single ended/non machine mode)
- Output power 4: L+R2570mW+570mW (32Q/THD+N<1%/balanced/non machine mode)
- Output power 5: L+R235mW+35mW (300Q/THD+N<1%/single ended/single machine mode)
- Output power 6: L+R2115mW+115mW (300Q/THD+N<1%/balanced/machine mode)
- Signal to noise ratio: ≥ 124dB (weighted by A)
- Bottom noise: PO<2 μ V (weighted by A); BAL<3.4 μ V (weighted by A)
- THD+N: < 0.0004% ( 1kHz/ -2dB@32Q )
- Package: Fiio QX13 *1.
