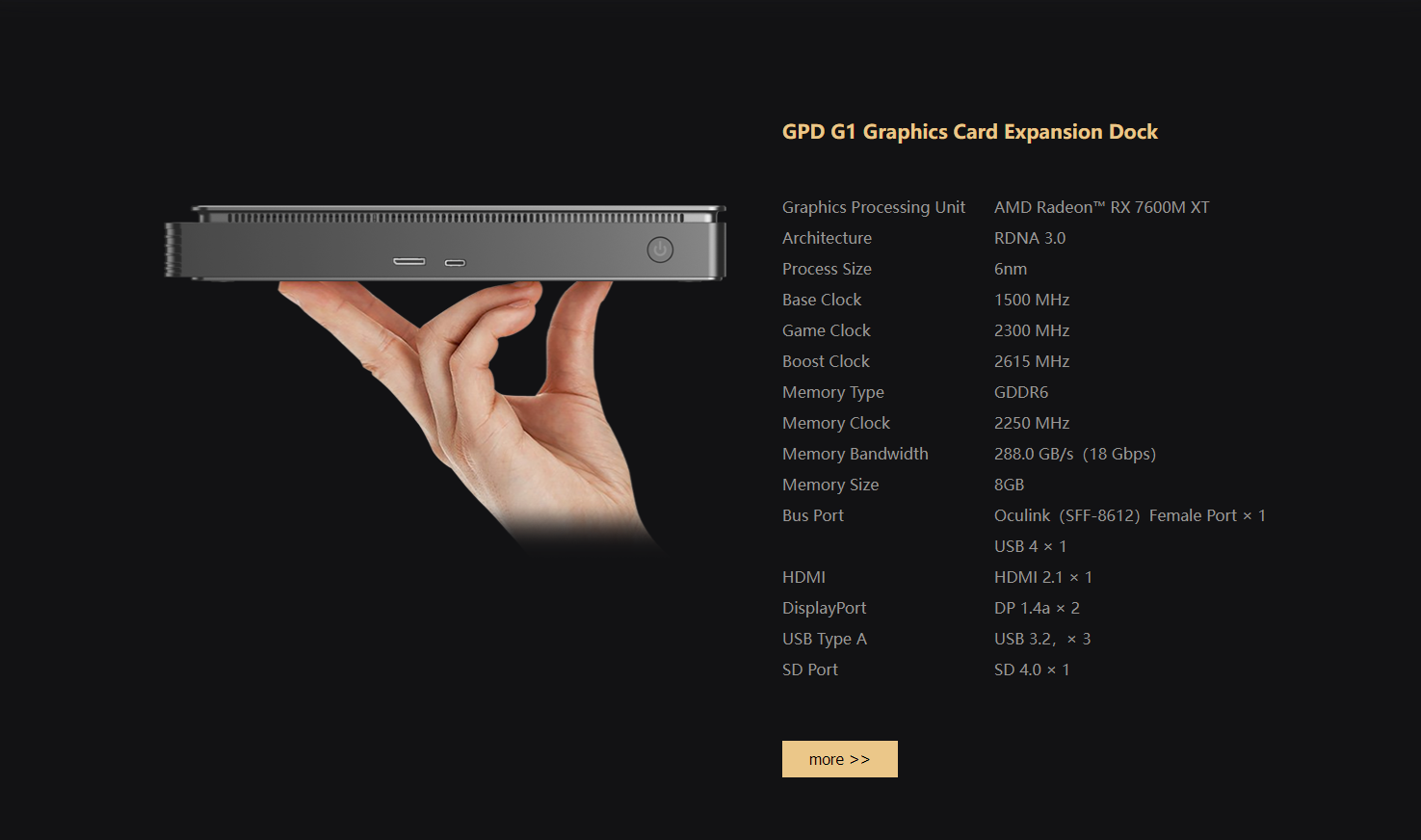

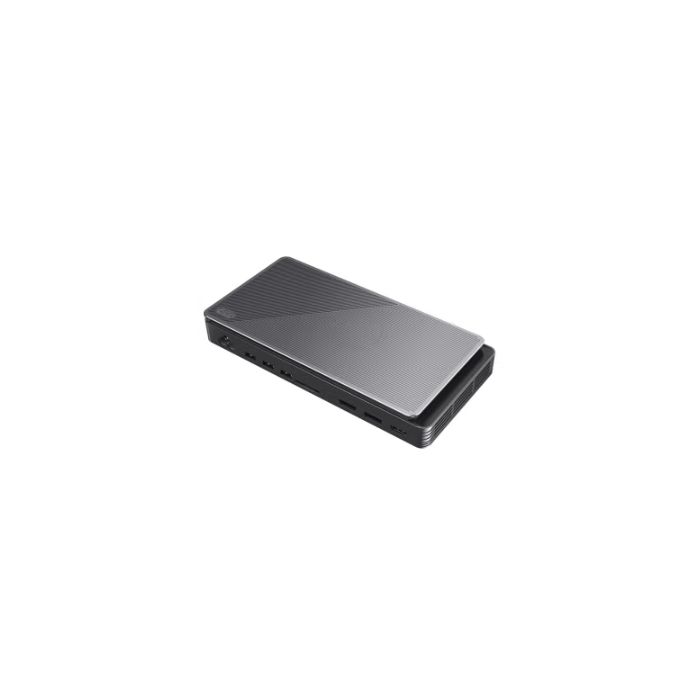

GPD G1 Graphics Card Expansion Dock, AMD Radeon RX 7600M XT
AMD Radeon RX 7600M XT Mobile Graphics, 8GB GDDR6, RDNA3 Architecture, Oculink, USB4, Thunderbolt 4
- RDNA3 Architecture，6nm Process
-
Oculink Interface - 63Gbps Effective Bandwidth
-
USB4 Interface - 40Gbps Effective Bandwidth
MAIN FEATURES
The Latest RDNA3 Architecture Mobile Discrete Graphics Card Delivers Top-Level Gaming Experience.
Built On A Brand-New Architecture
RDNA3 Architecture, 6nm Process, PCIe 5.0, 75 - 120W TGP.
Game Rendering - Configuration
Transistor Count: 13.3 B
Compute Units: 32
Stream Processors: 4096
RT Cores: 32
TMUs: 128
ROPs: 64
L0 Cache: 512 KB
L1 Cache: 512 KB
L2 Cache: 2 MB
L3 Cache: 32 MB
Video Memory And Clock Frequency
Memory Size: 8GB GDDR6
Memory Bus: 128 bit
Memory Clock: 2250 MHz
Memory Bandwidth: 288.0 GB/s
Base Clock: 1500 MHz
Game Clock: 2300 MHz
Boost Clock: 2615 MHz

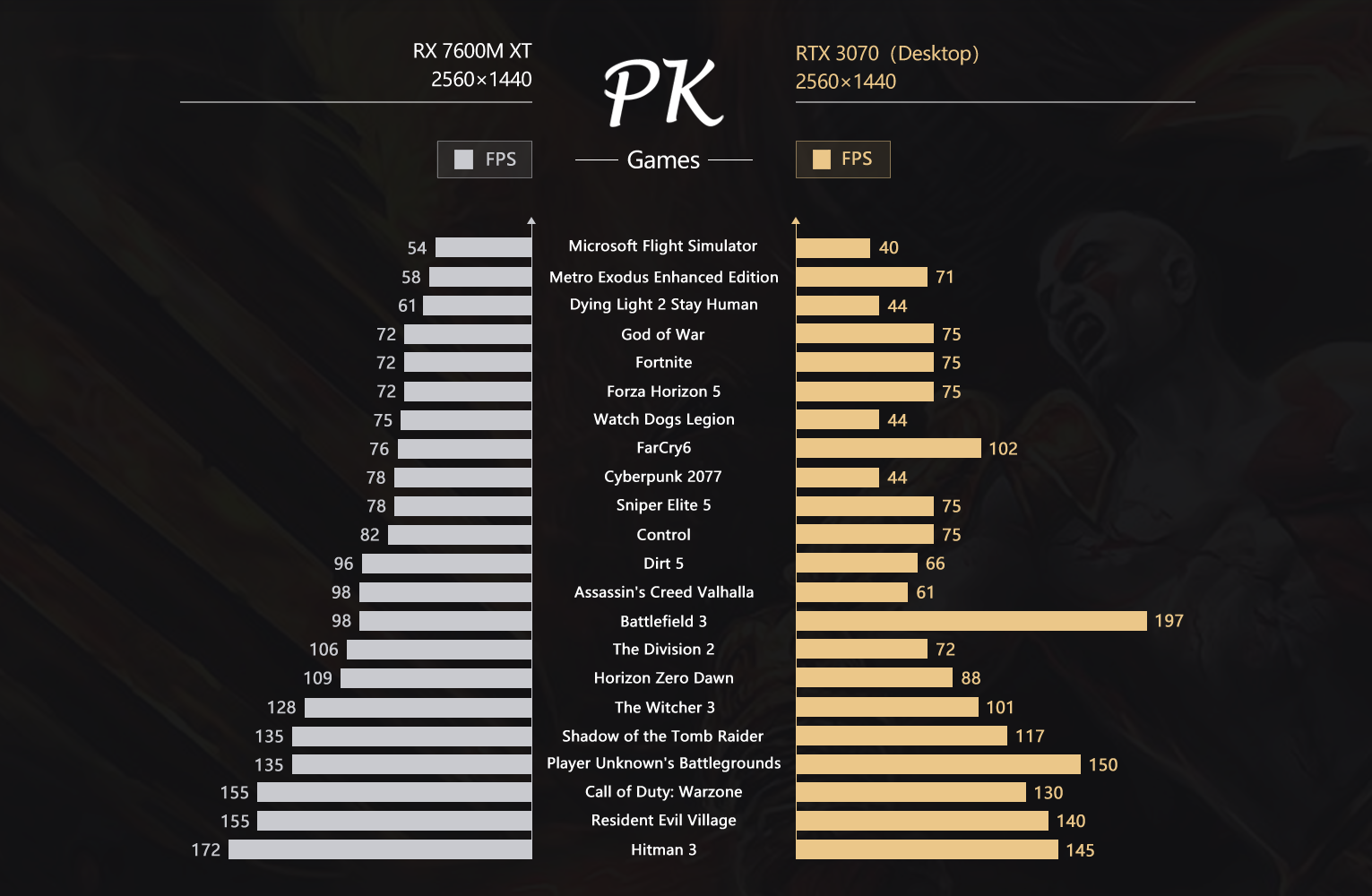

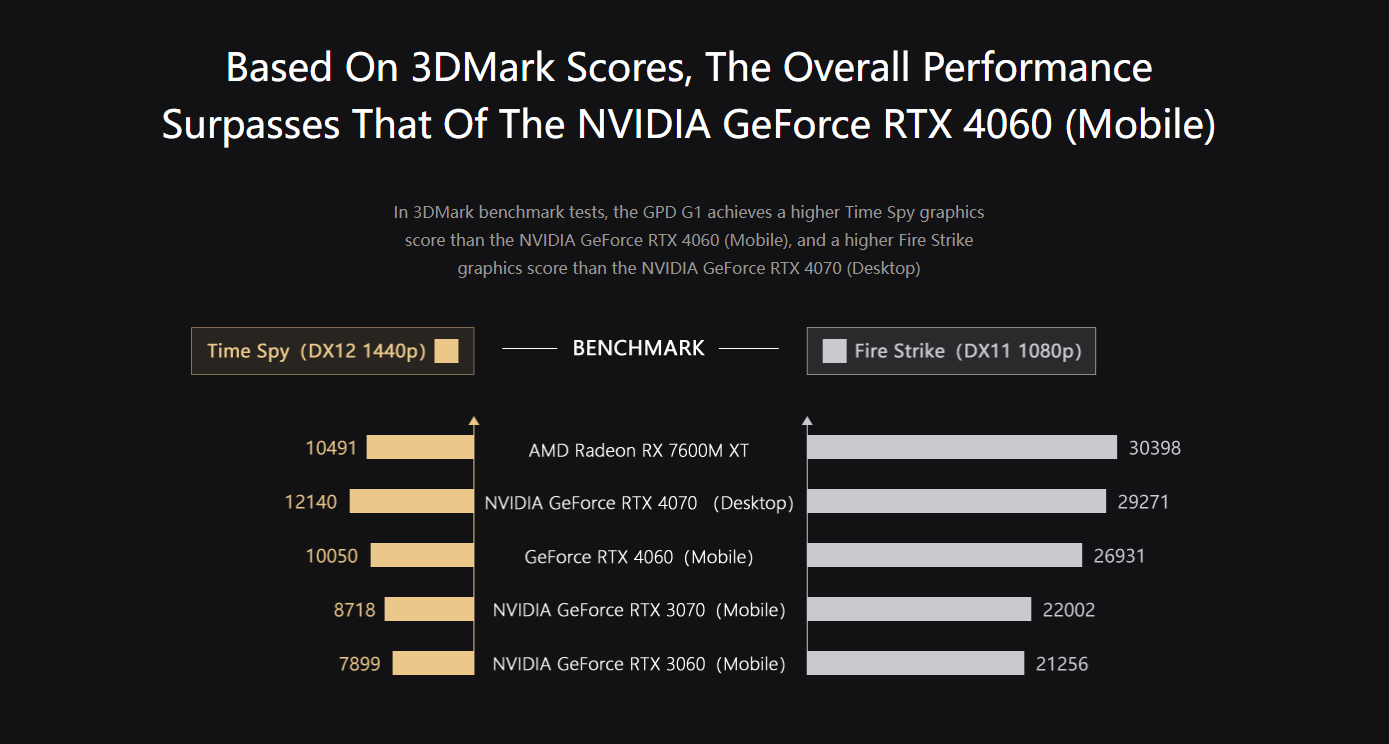

Theoretical Performance Surpasses RTX 4070
FP16 (half): 42.84 TFLOPS
FP32 (float): 21.42 TFLOPS
FP64 (double): 669.4 GFLOPS
Pixel Rate: 166.9 GPixel/s
Texture Rate: 334.7 GTexel/s
Axial Fan, Dynamic Temperature Control Design
The axial fan rotates smoothly without stuttering or delay, and the intelligent temperature control design achieves lower temperatures and noise. The hidden three-in-one air duct reduces internal air turbulence and improves air flow.
Gallium Nitride PC Power Supply
It has a built-in ultra-compact gallium nitride PC power supply with PFC + LLC architecture, operates with zero noise, and provides 240W power supply design with a full load efficiency of up to 94%, fully meeting the power supply needs of the graphics card and external device interfaces.

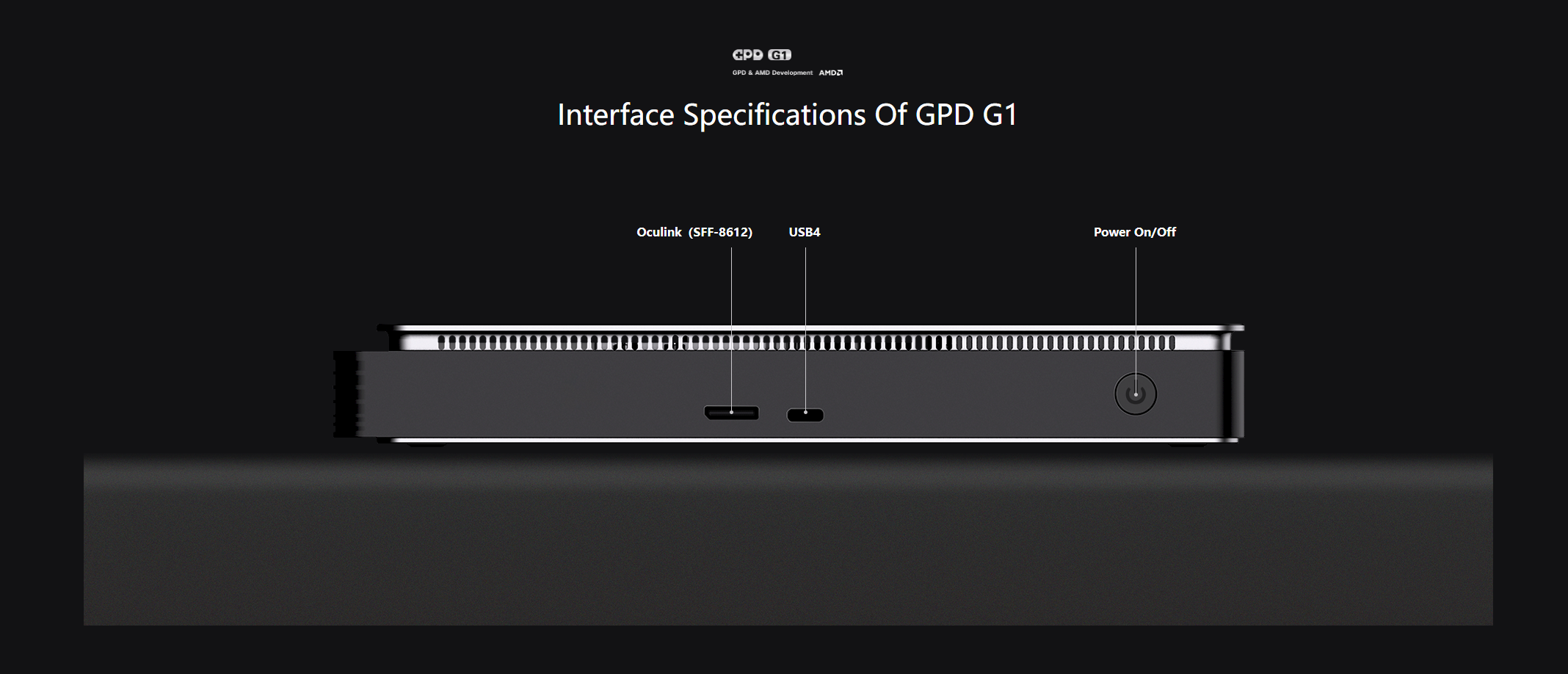

Thunderbolt 3 / Thunderbolt 4 / USB4 Interface + Oculink Interface

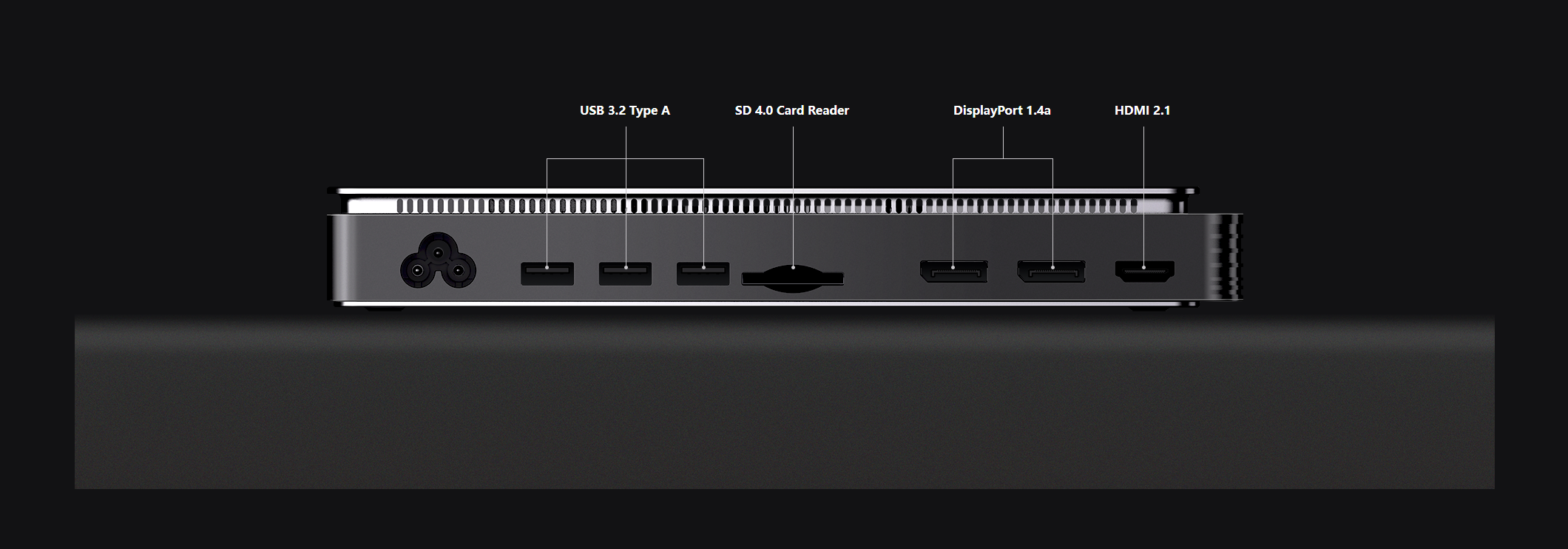

The unique Oculink interface of GPD G1 provides an effective bandwidth of 63Gbps, allowing for discrete graphics expansion for GPD products including the WIN Max 2 2023, providing users with the best gaming and office experience! When connected with an Oculink cable, the DP and HDMI interfaces of GPD G1 can simultaneously connect to 3 external displays.
The GPD G1 also supports connecting to any device that supports Thunderbolt 3/4 or USB4 through its USB4 interface. With this connection, the G1 can not only connect to three displays but also activate the USB A and SD card reader, expanding the range of peripherals and improving the gaming experience.
Supports 60W Charging - PD Fast Charging Protocol
With the GPD G1, you can say goodbye to your charger! As long as your device has a Type-C interface and supports the PD fast charging protocol, you can use the USB4 port of the GPD G1 to charge your device with up to 60W.
