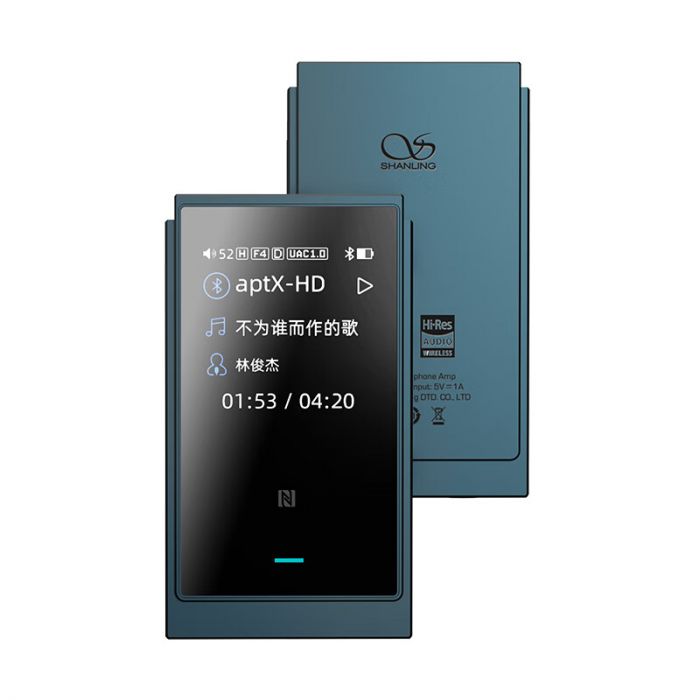

SHANLING UP6
SHANLING UP6 is a portable Bluetooth DAC/AMP, is equipped with Dual ES9069Q DAC which are capable of high performance and accurately reproducing high-resolution audio.
Features:
1.54-inch Display
Utilizing a compact 1.54-inch LCD panel from Sharp, offering 240*240 resolution, providing for better user experience.
Dual ES9069Q DAC:
SHANLING UP6 is equipped with flagship Dual ES9069Q DAC Chip, ensuring superior audio fidelity.
Qualcomm QCC5125 Bluetooth Chipset:
SHANLING UP6 is powered by Qualcomm QCC5125 Bluetooth chipset, supports high-resolution audio formats, including PCM up to 768 kHz/32-bit and DSD512. It is compatible with LDAC and aptX HD codecs, allowing users to enjoy lossless audio streaming without compromising quality.
Bluetooth 5.2
Two-way Bluetooth 5.2 for seamless wireless playback and device pairing.
Bluetooth protocol: LDAC/aptXHD/aptX-Adaptive/aptXLL/aptXAAC/SBC.
Simple Interface Dual Gain Levels
SHANLING UP6 is equipped with 3.5mm single-ended, 4.4mm balanced audio output interface.
Long Battery Life
- 950mAh battery providing extended playback time for uninterrupted listening sessions.
----------------------------
Specifications:
| DAC |
4X AK4493SEQ DAC |
| Low Gain |
155mW @ 32Ω |
| High Gain |
626mW @ 32Ω |
| Frequency response |
20Hz-40kHz(-0.5dB) |
| THD + N: |
0.0008 @ 32Ω(A weight @ 0.5V) |
| Dynamic Range: |
128dB @ 32Ω |
| Channel separation: |
75dB @ 32Ω |
| SNR: |
128dB @ 32Ω |
| Noise floor: |
119dB |
| Output impedance: |
1.2Ω |
| Headphone output ports | 3.5 mm Single-Ended, 4.4mm balanced output |
| Audio input interface | Type-C Cable |
| Support DSD | 512 |
