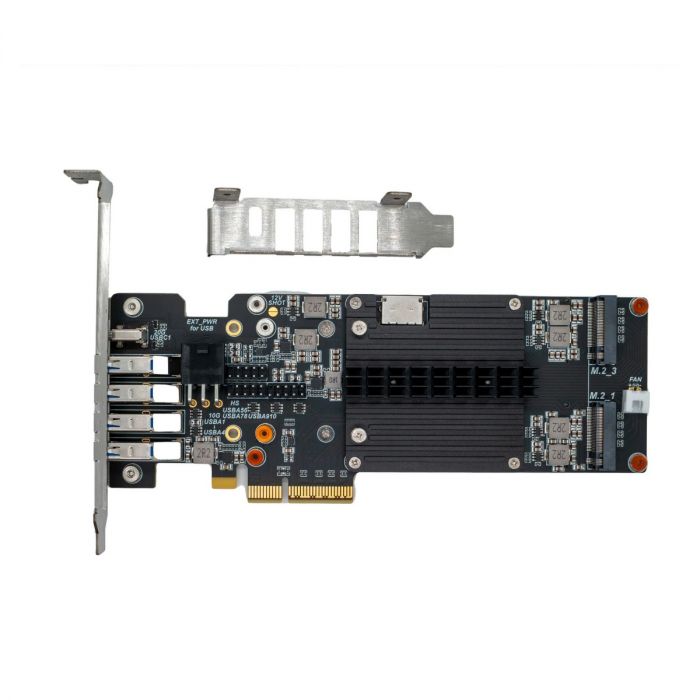

WisdPi PROM21 All in Expansion Card
Transform any PC with the WisdPi PROM21 All in Expansion Card. Powered by AMD B650, it delivers 4x M.2 SSD slots, switchable OCuLink (PCIe or 4x SATA), 20Gbps USB-C, and 10Gbps USB-A ports. Ideal for NAS, homelab, and compact workstations. Compatible with AMD, Intel, Mac Silicon & Raspberry Pi 5.
Features:
The WisdPi PROM21 All in Expansion Card is a flagship PCIe x4 add-in card powered directly by the AMD B650 (Promontory 21) desktop chipset. It transforms any standard PCIe slot into a desktop-grade I/O hub, delivering massive storage capacity and next-gen connectivity to workstations, homelabs, and compact PCs.
PCIe 4.0 x4
The PROM21 features four M.2 slots (two on the front, two on the rear) for high-speed NVMe and SATA SSDs. The versatile OCuLink port supports multiplexed PCIe/SATA signals, switchable via an onboard DIP switch—connect external GPUs or break out into four SATA drives for enterprise storage arrays. Rear I/O includes a blistering 20Gbps USB-C port and four 10Gbps USB-A ports for zero-bottleneck peripheral connections. Six internal USB 2.0 headers provide additional expansion for internal devices.
Stability
The card features a dedicated 6-pin power connector to ensure stable voltage under heavy loads, paired with a custom aluminum heatsink and a cooling fan header. It measures 175mm × 70mm and is compatible with x86 platforms (AMD/Intel) and ARM systems including Mac Silicon and Raspberry Pi 5.
Main Parameters
- Controller: AMD Promontory 21 (B650 Chipset);
- Host Interface: PCIe 4.0 x4;
- Storage Expansion: 4x M.2 Slots;
- External USB: 1x USB 3.2 Gen 2x2 Type-C (20Gbps), 4x USB 3.2 Gen 2 Type-A (10Gbps);
- Internal USB: 6x USB 2.0 front panel header
- Power Supply: PCIe slot + 6-pin PCIe power connector
- Cooling: Aluminum heatsink with onboard fan header
- Compatibility: x86 (AMD / Intel) / ARM (Mac Silicon Series / Raspberry Pi 5)
