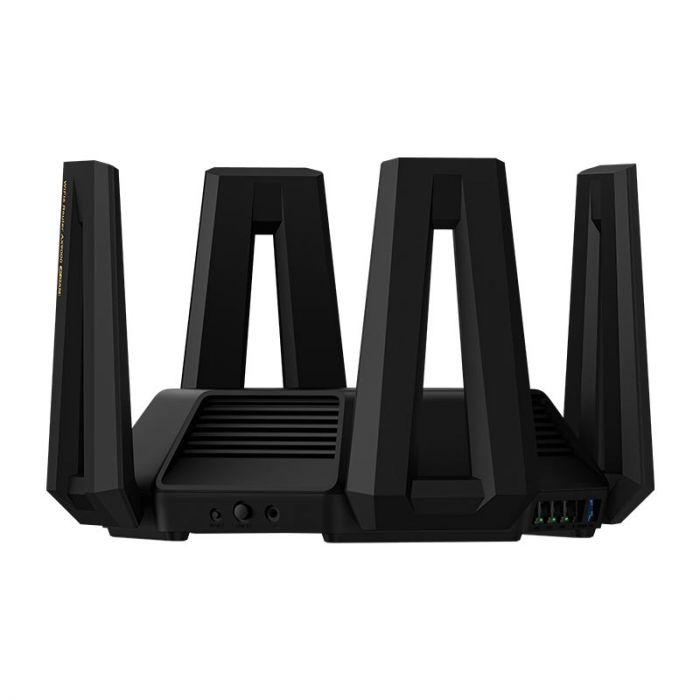

Xiaomi Router AX9000
Gaming flagship model, Blazing WiFi 6, 9000 MHz Blazing Speed Experience
Hardware Specifications
ProcessorQualcomm IPQ8072A 4-core A53 2.2GHz CPU
Dual-core 1.7GHz NPU for grid acceleration engine
Memory 1GB
2.4G Wi-Fi4×4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate up to 1148Mbps)
5.2G Wi-Fi4×4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate up to 4804Mbps)
5.8G Wi-Fi4×4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate up to 2402Mbps)
Product Antennas External High Gain Antenna + Built-in AIoT Antenna
Product cooling active cooling
Interface 1 x 10/100/1000/2500M Adaptive WAN/LAN port (Auto MDI/MDIX)
1 10/100/1000M Adaptive WAN/LAN port (Auto MDI/MDIX)
3 10/100/1000M Adaptive LAN ports (Auto MDI/MDIX)
8 LED indicators (SYSTEM indicator × 1, INTERNET indicator × 1, network port light × 5, ambient light × 1)
System reset button 1pc
USB3.0 port 1pc
Mesh networking button 1pc
Power button 1pc
Power input interface 1pc
Protocol standard IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
Certification standards GB/T9254-2008; GB4943.1-2011
Wireless Parameters
Tri-band 2.4GHz, 5.2GHz and 5.8GHz
Wireless Channel 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5.2GHz Channel: 36,40,44,48,52,56,60,64
5.8GHz Channel: 149,153,157,161,165
Modulation 11b: DSSS: DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps)11a/g: OFDM: BPSK(6/9Mbps), QPSK(12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/36Mbps), 16QAM(24/36Mbps), 64QAM(24/36Mbps), 64QAM(24/36Mbps), 16QAM(24/36Mbps), 64QAM(24/36Mbps), 64QAM(24/36Mbps), 64QAM(24/36Mbps), 64QAM(24/36Mbps).
64QAM(48/54Mbps)11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
Rate set: MCS0~MCS1511ac: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
Rate set: MCS0~MCS11(support 4 streams).4096QAM.
Rate set: MCS12~MCS13(support 2 streams).
